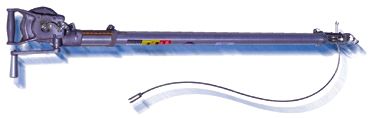

500 lb. Manual Hoists

500lbmanual

Our best-selling line of manual hoists.  Each model is lightweight and rated for a capacity of 500 lb.  Equipped with telescoping barrel (5-9 ft.) and universal attach configuration.  Select models include an integrated load limiter device that locks the winch when maximum set loads are exceeded.

MODEL SERIES

PF51-002
PF51-003
PF51-004
PF51-005

SPECIFICATIONS

Rated Capacity: 500 lb.
Cable: 7 x 19 aircraft cable, 5/32 in. (4.0 mm) diameter, 40 ft. (12.2 m) length
Weight: 20 lb.
Nominal Lift Speed: 5.8 ft. per min.
Gear Ratio: 30:1
Drum-Loc Clutch: Enables rapid payout of slack cable (1:1 ratio).  Positively locks if any load is on the cable.
Overload Device (on select models): Adjustable for hoist load limiting within a range of 100 to 500 lb., plus or minus 10%.  Preset at factory to 500 lb. to prevent overload.
